Solution for forging of hot die forging hydraulic press

Max Feeding size:
Power:
Capacity:
Product description: 1.Introduction：Die forging hydraulic press is a modern die forging high-precision forming equipment produced by introducing advanced technology from the world, which has a wide range of applications,
INQUIRY EMAIL

1.Introduction：

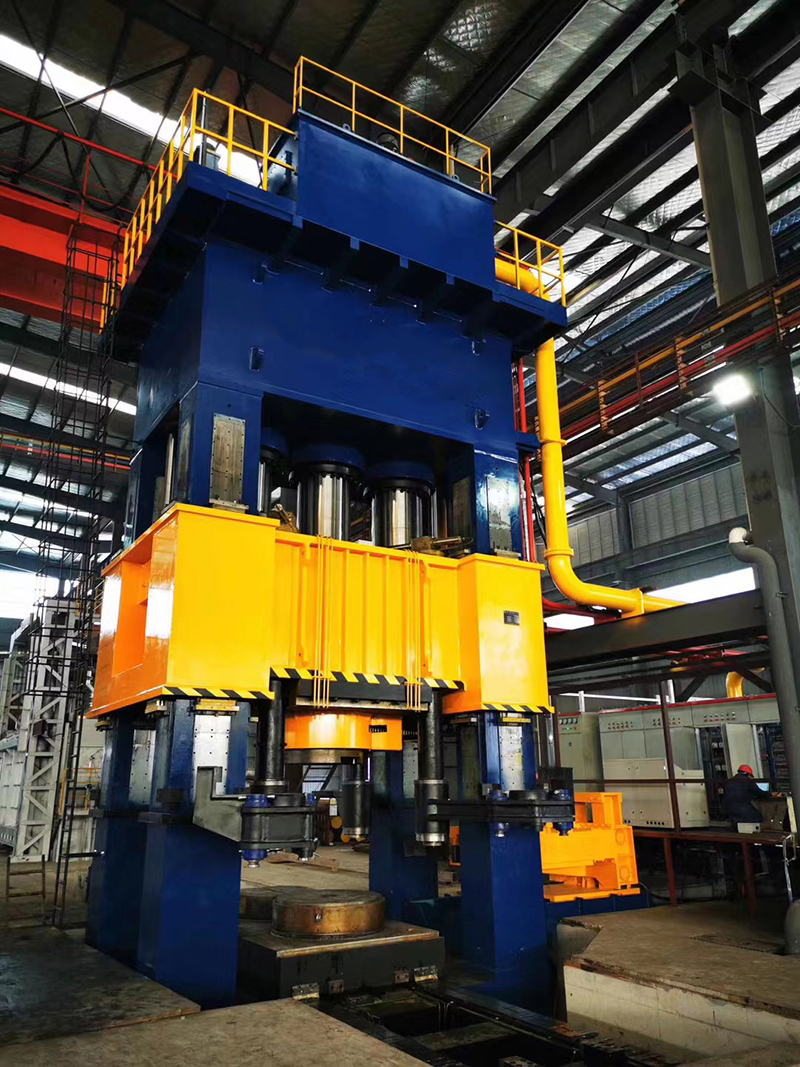

Die forging hydraulic press is a modern die forging high-precision forming equipment produced by introducing advanced technology from the world, which has a wide range of applications, including multi-directional extrusion, upsetting, punching, closed die forging and so on. It is mainly suitable for forging production of all kinds of extra-long forgings, shafts, discs and special-shaped parts, such as bearing inner rings, flanges, half shafts, joints, crossheads, hubs, train wheels, etc.

2.Application：

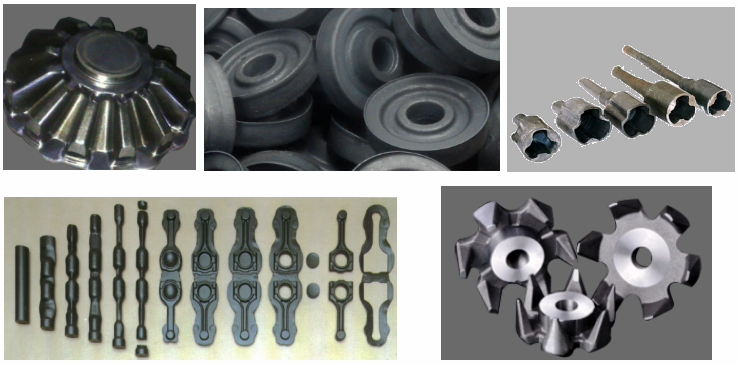

This series of hydraulic press is suitable for stretching, bending, flanging, cold extrusion, blanking and other processes of metal materials, as well as for correcting, pressing, pressing and forming powder products and abrasive products, and pressing and salting plastic products and insulating materials. It is widely used in large, medium and small enterprises, factories, industrial and mining and automobile repair shops, heavy machinery, flange plates, belt pulleys, shaft bushings, disassembly and assembly of bearings, straightening and correction, bending, punching with dies, blanking, stretching and flanging instead of the old screw hand press for forming, and jack testing with pressure gauges. Also it is widely used for automotive industry such as producing Differential half-axle gear and planetary gear (bevel gear), straight helical gear forging blank, automobile connecting rod, automobile hub bearing-inner+outer ring, automobile constant velocity universal joint, automobile generator pole, universal joint fork, automobile engine turbine disk, etc.

3. Our Stamping power press machine solution for choose

Item		Item	AYD16 series die forging hydraulic press
Item		Item	YD16F-630	YD16-630	YD16F-800	YD16-800	YD16-1000	YD16F-1250	YD16F-1600	YD16F-2000	YD16F-3150	YD16F-5000	YD16F-10000
Rated force		KN	6300	6300	8000	8000	10000	12500	16000	20000	31500	50000	100000
Capacity of return		KN	6300	8000	1000	1000	1300	1000	1200	1200	1500	3000	2000
Knock out force		KN	630	1000	1000	1000	1600	1000	1600	1600	2000	1200	2500
Slide stroke		mm	900	1000	600	900	900	600	600	600	800	1300	900
Knock out stroke		mm	350	350	350	350	350	350	350	350	350	350	350
Daylight Opening height		mm	1400	1500	1200	1600	1500	1200	1400	1400	1500	2300	2000
	Down	mm/s	200	250	250	250	200	250	250	250	250	200	100
Slide speed	Pressing	mm/s	25~55	20~50	20~45	20~45	15~35	20~40	20~40	20~40	20~40	12	5~12
	Return	mm/s	250	200	250	250	200	350	250	250	250	150	100
Knock out speed	Knock out	mm/s	100	100	100	100	no	100	100	100	100	100	100
Knock out speed	Return	mm/s	200	200	200	200	200	200	180	180	200	200	200
Table area	L-R	mm	1400	1000	1400	1000	1200	1200	1500	1600	2000	2500	2500
Table area	F-B	mm	1400	1000	1000	1000	1200	1200	1100	1200	1500	2000	2000
Motor power		KW	165	142	195	195	195	250	340	380	610	980	590
Structure			Frame	Column	Frame	Column	Column	Frame	Frame	Frame	Frame	Frame	Frame

4. Contact us.

For more details about our cheap high performance cost power press and hydraulic press machine tools with JIS 1 accuracy standard, welcome and feel free to contact us.
