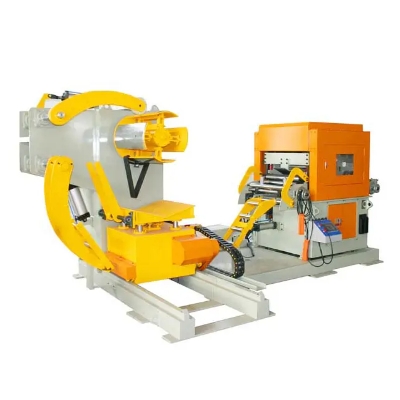

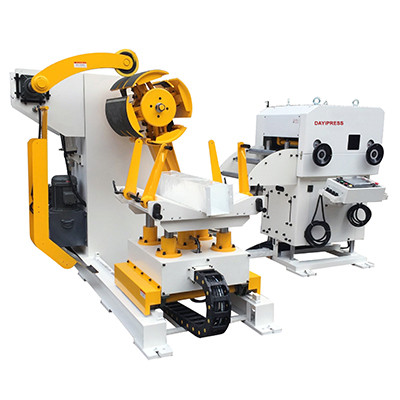

Our 3 in 1 Coil Sheet Straightener Feeder with Decoiler series is a compact straightener feeder with decoiler, suitable for coil sheet uncoiling, straightening and feeding to stamping press line automatically according to press cycles.PLC control with LCD HMI. Hydraulic mandrel expansion, hydraulic coil loading trolley, motorized feeding height adjustment.Oil sprayer lubrication system and hydraulic scrap cutter are optional.
Technical parameter：
Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
Thickness of Material (mm) | 0.3-2.3 | |||||
Max. Coil Weigh(kg) | 2T | 3T | 5T | |||
Weight can be customized | ||||||
Coil L.D.(mm) | 508 | |||||
Max. Coil O.D.(mm) | 1200 | |||||
Max. Speed(m/min) | 16 | |||||
Feed Pitch Accuracy (mm) | ±0.15 | |||||
Feed ROLL | Upper1/Lower1 | |||||
Straighten ROLL | Upper5/Lower4 | |||||
Voltage | 380VAC/60㎐ | |||||
Air power supply | 5kg/CM2 | |||||
Uncoiler Expansion | Hydraulic | |||||
Servo Motor(kw) | AC1.8 | AC2.9 | ||||
Uncoiler Motor(kw) | 1.5kw | 2.2kw | ||||
Coil Car | optional | |||||
Pass line | ±100MM | |||||
