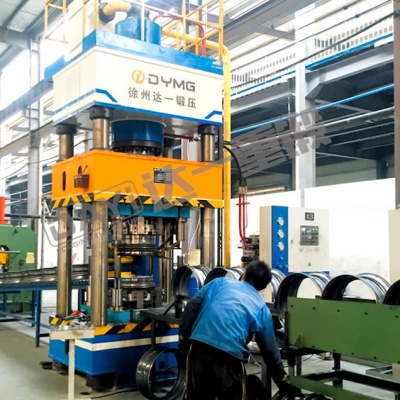

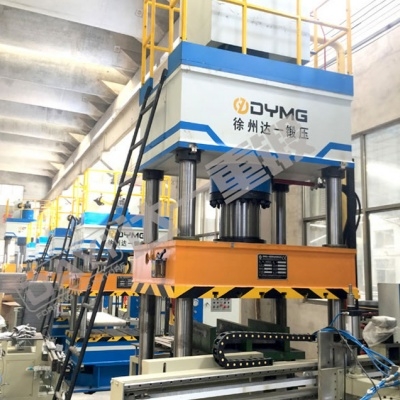

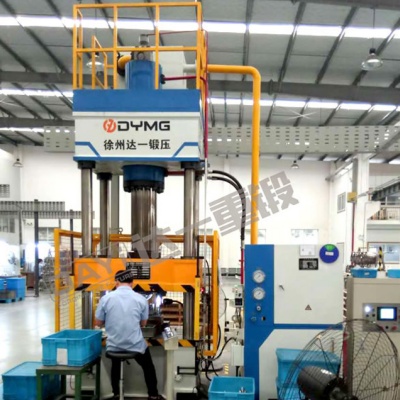

Four-column hydraulic press

1. Description:

Four-column hydraulic press is used for drawing, blanking (blanking buffer device can be selected), bending, flanging, cold extrusion and other stamping processes of metal materials. It is also suitable for correction, press-fitting and press-forming of powder products, abrasive products, plastic products and insulating materials.

2. Application:

According to the needs of users, devices such as blanking buffer, punching and moving table can be added. Besides forging, it can also be used for correction, press-fitting, packaging, briquetting and pressing plate. Pressing technology of shaft parts and calibration of profiles. Buckling, press-fitting of bearing parts, can also be used for bending, arguing, setting, stamping, nesting and stretching of plate parts.

3. Specification:

Four-column hydraulic press is also called: Four-column hydraulic press and four-column punching machine have tonnage of 100 tons, 200 tons, 315 tons and 500 tons.

Optional accessories:

Blanking buffer device, express stroke flushing device, light curtain safety protection device, cooling device, PLC touch screen control shunt, work light, 20T--1000T can be specially ordered.

4. Main structure and electrical system:

This series of hydraulic presses is a general-purpose hydraulic press, which is mainly used for drawing, turning, bending and stamping of metal sheet parts, and can also be used for general pressing processes.

Computer-optimized structural design with three beams and four columns is simple, economical and practical.

Hydraulic control adopts cartridge valve integrated system, which has reliable action, long service life, small hydraulic impact and reduced continuous pipeline and leakage points.

Independent electric control system, reliable work, intuitive action and convenient maintenance.

It adopts button centralized control and has three operation modes: adjustment, manual and semi-automatic.

Through the selection of operation panel, two kinds of forming processes can be realized, namely, fixed distance and constant pressure, and it has the functions of maintaining calendering time. The working pressure of the slider, the travel range of no-load express downward and slow work can be adjusted according to the process needs.

Hydraulic system:

The hydraulic system adopts variable pump oil supply system, adopts large-flow centralized control valve block, sets oil suction filter at the oil inlet of the pump, and sets high-pressure oil filter at the outlet of the pump to prevent impurities from entering the hydraulic system to ensure the normal operation of the oil circuit. In the system, there are devices such as oil temperature, oil level display and air filtration. The mailbox is a welded steel plate structure, with a cleaning window and a plug for oil discharge and sewage discharge at the bottom.

5. Features and advantages:

l Three beams and four columns structure, economical and practical;

l Hydraulic control adopts cartridge valve integrated system, which reduces leakage points, has reliable action and long service life;

l It can realize two forming processes of constant pressure and fixed distance, with the function of maintaining calendering time and adjustable delay time;

l It adopts button centralized control and has three operation modes: adjustment, manual and semi-automatic.

l Can be equipped with mobile workbench, blanking buffer device, photoelectric protection device, blanking device, slider safety bolt, etc.

6. Delivery date and quality assurance policy:

       Delivery time: 3-6 months.

       Warranty period: 12 months
