Titanium alloys fast Speed Hot forging Hydraulic press machine solution

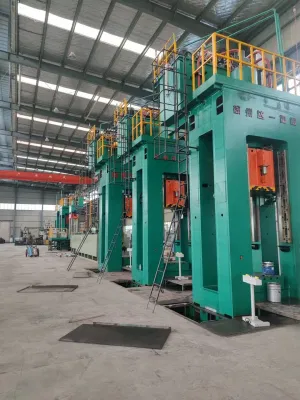

High Capacity H Frame Free Forging Hydraulic Press Machine.

1000/2000/3000/4000t High Capacity H Frame Free Forging Hydraulic Press Machine.


Application:

This series of hydraulic presses are used in the drawing , blanking , bending , flanging, cold extruding ,straightening ,pressing-in and forming technology fokr metal ,plastic ,abrasive and insulator products, which is widely used for Titanium alloys and superalloys fast Speed Hot forging process.

图片15.png 图片17.png 图片18.png

Characteristics:

1.optimized dsesign,the frame is entirely welded with steel piates, and treate to relive stress by tempering for high precision .
2.Cartridge valve equipped for hydraulic contorl system,reliable, du-rable znd less hydraulic shock, shorter connection pipeline and fewer release points.
3.Centralized button control system,with adjustment,hand and semi-auto operateion modes at operator's choice(set-stroke single and setpressure single).
4..The slide operating in high speed,ensuing high efficiency.
5.The slide operating pressure,no-load quick travel and low-speed movement can be adjusted accoeding to technoligical requirements.
6.moving bolster,buffering device for blanking,ejecting device,safety device for slide can be selected.

Product parameters:

item		unit	Product specification
item		unit	YD34-100	YD34-315	YD34-630	YD34-800	YD34-1250
Rated force		KN	1000	3150	6300	8000	12500
Knock out force		KN	800	400	1000	1000	2000
Slide stroke		mm	800	800	900	900	900
Knock out stroke		mm	350	250	350	350	300
Daylight Opening height		mm	1100	1200	1500	1500	1500
Slide speed	Down	mm/s	150	150	200	200	150
	Pressing	mm/s	8-15	8-15	8-16	8-19	8-20
	Return	mm/s	100	140	150	170	200
Knock out speed	Knock out	mm/s	70	100	80	100	80
Knock out speed	Return	mm/s	140	150	220	240	220
Table area	L-R	mm	1200	1500	1800	2200	1800
Table area	F-B	mm	1200	1200	1400	1500	1600
Motor power		KW	11	22	46	70	125

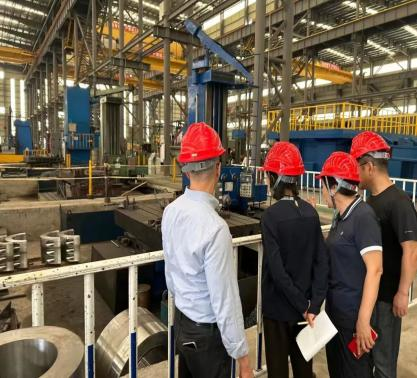

customers:

Our business scope throughout the country, and exported to South Asia, southeast Asia, Russia, CIS countries and regions.In long-term communication with customers, we understand the customer-oriented service purpose, adhering to the "Pursuance excellence, continuous innovation" spirit of enterprise, and strive to achieve the industry technology in a larger scope, more areas of breakthrough and development.
