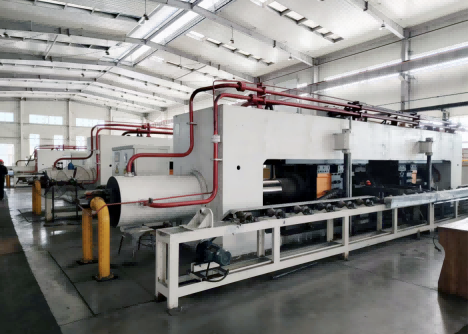

Extrusion press production line for truck tractor trailer axle

Full automatic axle extrusion press production line is a special Hydraulic press line, which is widely used by commercial vehicle tractor and trailer axle industry, railroad, aerospace and other fields. It used to forming the metal tube into the required shape and size of axle by extrusion process.

Axle Extrusion press Production line Main components

1. Main machine frame:

Provide support and stability to ensure the normal operation of the machine under high pressure.

2. Extrusion Die:

Determines the final shape and size of the axle, usually made of high strength alloy steel.

3. Hydraulic system:

2.provides power to drive the extrusion head to apply high pressure to the metal tube.

4. Control System:

Automated controls ensure precision and consistency of operation.

5. Heating System:

Preheats the metal tube to increase its plasticity and facilitate molding.

Axle Extrusion press Production line Working Principle

1. Billet Preparation:

Select the right size of metal billet, usually cylindrical.

2. Heating:

The billet is heated to the appropriate temperature to increase its plasticity.

3. Extrusion molding:

Put the heated billet into the die, the hydraulic system drives the extrusion head to apply high pressure, so that the billet through the die molding.

4. Cooling and Processing:

The molded axle is cooled and subjected to subsequent processing such as heat treatment and surface treatment.

Our Axle Extrusion press Production line Advantages

1. High precision. It can produce high precision and complex shaped axles.
2. High efficiency. High degree of automation, high production efficiency.
3. High material utilization, it reduce material waste and cost greatly.
4. High strength. The extruded products have high mechanical strength and durability.

Axle Extrusion press Production line' Application fields

• Heavy truck tractor and trailer axle industry, which is used to manufacture automobile axles, transmission shafts, etc.

• Railroad transportation, which is used to manufacture train axles.

• Aerospace. which is used to manufacture aircraft landing gear and other key components.
  Engineering machinery, which is used to manufacture heavy machinery axle parts manufacturing.


Axle Extrusion press Production line features:

1. Intelligent and automatic.

Introduce intelligent control system to improve the automation level, in crease efficiency, low cost.

2. Energy saving and environmental protection.

Optimize heating and hydraulic systems to reduce energy consumption.

3. Application of new materials.

To adapt to the demand for high-strength and lightweight materials.
