Two column Hydraulic Forging Press

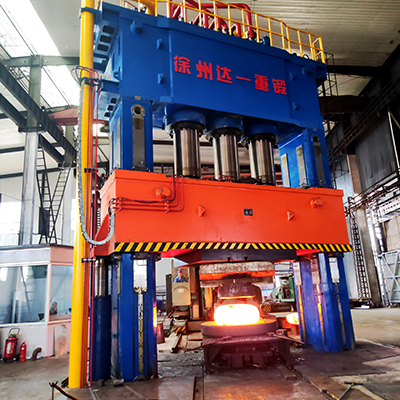

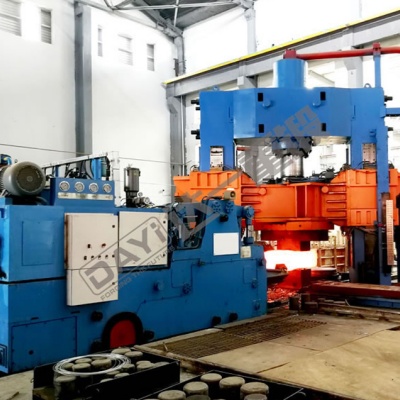

12.5MN hydraulic forging press with 3 ton forging manipulator

Max Feeding size:
Power:
Capacity:
Product description: 12.5MN hydraulic forging press is suitable for forging and billet making of carbon structural steel, alloy structural steel, carbon tool steel, alloy tool steel, bearing material, spring material , stainless steel, high-temperature alloys, titanium materials, nickel materials. It could be used for upsetting, ring billet making processes. As well as all free forging processes such as elongation, bending, misalignment, chopping, and horse frame expansion forging process
INQUIRY EMAIL

Two column 12.5MN Hydraulic Forging Press

1. Description:

12.5MN Hydraulic forging press unit complete set includes: the equipment supplied should be brand-new complete set (including all mechanical components, hydraulic components, electrical components and accessories, etc.), including the entire process of equipment design, manufacturing, transportation, installation, commissioning, assistance in trial production until normal production, as well as technical services (including operation, maintenance, repair and other technical training) and information provision.


2. Application:

This press is a pre-stressed four columns frame forging hydraulic press, suitable for forging and billet making of carbon structural steel, alloy structural steel, carbon tool steel, alloy tool steel, bearing material, spring material , stainless steel, high-temperature alloys, titanium materials, nickel materials. It could be used for upsetting, ring billet making processes. As well as all free forging processes such as elongation, bending, misalignment, chopping, and horse frame expansion.

3. Specification:

12.5MN hydraulic forging press with 3 forging manipulator is desined for fast Titanium alloy and superalloy forging process.

12.5MN Hydraulic Forging Press Main Technical Parameters
No.	Parameter	Units	Specification		Remark
1	Rated force	MN	12.5
2	The structure of the press	/	prestressed frame with four columns upper pressing structure
3	Max opening height	mm	2500
4	Max slide stroke	mm	1200
5	Return force	MN	1.6
6	Space between two columns	mm	2000
		mm	1000
7	Moving workbench size	mm	3600*1200		LXW
8	Moving workbench stroke	mm	2200
9	Moving workbench speed	mm/s	0~200
10	Moving workbench load	t	≥30
11	Allowable load decentration	mm	100*100
12	Drive type		Oil pump direct drive
13	Control form		Manual, semi-automatic automatic, linkage
14	Circulating cooling system		Equipped		Water cooling cycle
15	Rated working pressure of hydraulic system	MPa	25
16	Maximum fast down speed	mm/s	≈250
17	Maximum return speed	mm/s	≈250
18	Forging control accuracy	mm	±1
19	Forging speed	mm/s	≈45
20	Automatic lubrication system		Equipped
21	Lateral moving anvil mechanism		Equipped
22	Height above the ground of the press	M	≤8.5
23	Hydraulic press main motor power	Kw	≈660
Forgingfrequency
	Forging deformation (mm)	Return distance (mm)		Forging frequency (times/min)
Fast forging	3~5	20~25		50-60
Normal forging	30~50	80~100		20~30

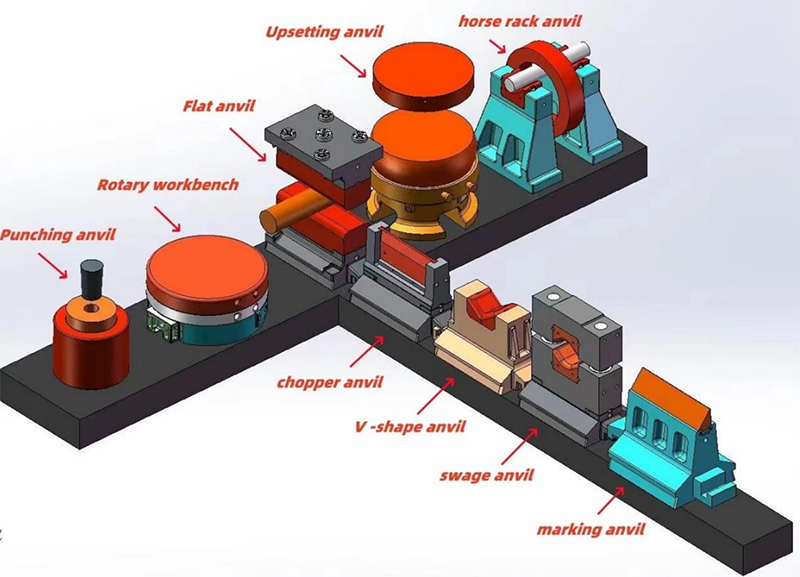

Forging anvi and tools(optional)
