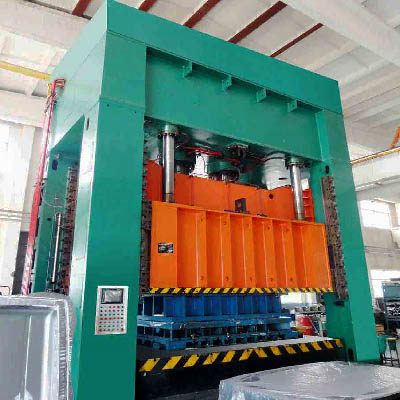

Double Action Hydraulic Stamping Press

Double action deep drawing hydraulic press YD28F series are suitable for all sheet metal deep drawing and shallow drawing processes, also it is widely used for bending, flanging, blanking processes.

Application:

YD28F series are especially for the following fields: Large sized automotive bodywork and stamping parts, Containers, stainless steel, aluminum, pressure container, stainless steel kitchen sink and washer body, covering parts of Tractor, motorcycle, aircraft and aerospace industries.

Features:

1. The four column frame types press featuring compact arrangement and high price performance ratio

2. Straight side structure has much higher rigidity and precision, eccentric load resistance performance, longer life time.

3. Cartridge valve integrated unit equipped in hydraulic control system, it has higher reliability and durability.

4. Unique piping and hydraulic impact design avoid Oil leakage, friendly to environment.

5. Automatic lubrication to the guideway easy the stree of maintenance.

6. Adopting Simonize PLC unit, machines is compact with sensitivity, reliability and flexibility, easy maintenance.

7. Stroke and pressure can be adjusted within specified scope.

8. Working with presetting stroke or presetting pressure. Pressure can be held, time can be delayed and adjusted.

7、Drawing side and blank holder and be joined together by location pins, thus the press can also be operated as single action hydraulic press.

Working Model:

Adjusting, manual and semi-automatic.

Specification:
