The fuselage adopts computer optimization design and all-steel welded frame structure, which has good accuracy retention. Hydraulic control adopts cartridge valve integrated system, which reduces leakage points, has reliable action and long service life. It can realize two forming processes of constant pressure and fixed distance, and has the function of maintaining calendering time and adjustable delay time.
l This equipment is especially suitable for bending, forming, flanging and other processes of central load parts. After equipped with blanking buffer device, it can also be used for punching and blanking processing, and it is a product of shipbuilding industry, pressure vessel industry, chemical industry and other industries.
l It can be used for drawing, turning, bending and stamping of sheet metal parts, and can also be used for general pressing processes. According to the needs of users, devices such as blanking buffer, punching and moving table can be added.
l In addition to forging, three-beam four-column hydraulic press can also be used for correction, press-fitting, packaging, briquetting and pressing plate.
l It can also be used in the pressing process of shaft parts, the calibration, buckle and press-fitting process of profiles, and the pressing process of bending, arguing, setting, stamping, nesting, stretching and plastic materials of plate parts, such as stamping, bending, flanging and thin stretching, etc., and can also be used in the pressing and forming operations of correction, press-fitting and plastic products and powder products.

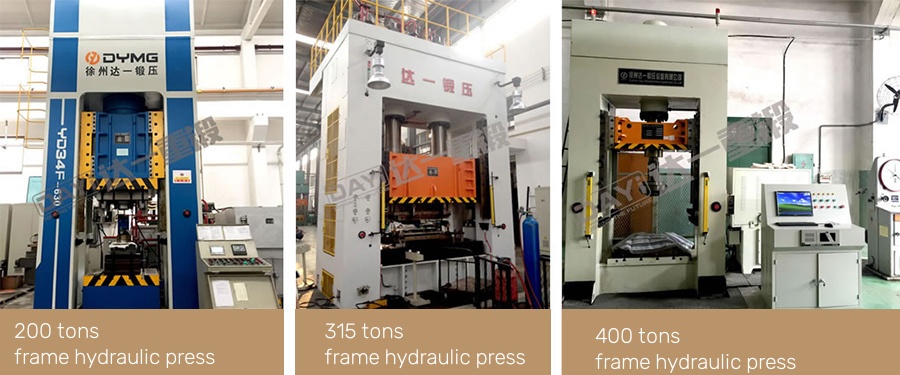

Frame hydraulic press, also known as frame press, frame press and frame punch, has main tonnage of 200, 315, 400, 500, 630, 800 and 1000 tons.
The equipment is economical and practical in structure. The hydraulic control adopts the integrated system of cartridge valve, which reduces the leakage point, is reliable in operation and has long service life. It can realize two forming processes of constant pressure and fixed distance. The working pressure stroke can be adjusted within the specified range, and the control adopts the button setting, which can realize three operation modes: manual, semi-automatic and full-automatic.
l Hydraulic press that can be customized into various hydraulic jacking cylinders;
l Blanking buffer device;
l PLC touch screen control system;
l Quick device;
l 200-2000t can be customized according to the specific requirements of customers.
Technical parameters:
Type | Unit | 315T | |
Nominal force | KN | 3150 | |
Maximum working pressure of liquid | Mpa | 24.6 | |
Maximum opening height | mm | 1250 | |
Jacking output | KN | 630 | |
Ejection stroke | mm | 300 | |
Slide stroke | mm | 800 | |
Slider speed | Idle descent | mm/s | 100 |
Work | mm/s | 8-15 | |
Return trip | mm/s | 100 | |
Table size | Front and back | mm | 1200 |
Left and right | mm | 1200 | |
Overall dimension of machine tool | Front and back | mm | 3440 |
Left and right | mm | 1550 | |
Height above ground | mm | 4600 | |
Power of motor | KW | 18.5 | |
Comment | T | 22 |
l The fuselage adopts computer optimization design and all-steel welded frame structure, which has good accuracy retention;
l Hydraulic control adopts cartridge valve integrated system, which reduces leakage points, has reliable action and long service life;
l It can realize two forming processes of constant pressure and fixed distance, with the function of maintaining calendering time and adjustable delay time;
l Four-corner and eight-sided guide rails have high guiding accuracy and strong anti-unbalanced load ability, and adopt centralized lubrication;
l It can be equipped with movable workbench, blanking buffer device, photoelectric protection device, blanking device, slider safety bolt, etc.

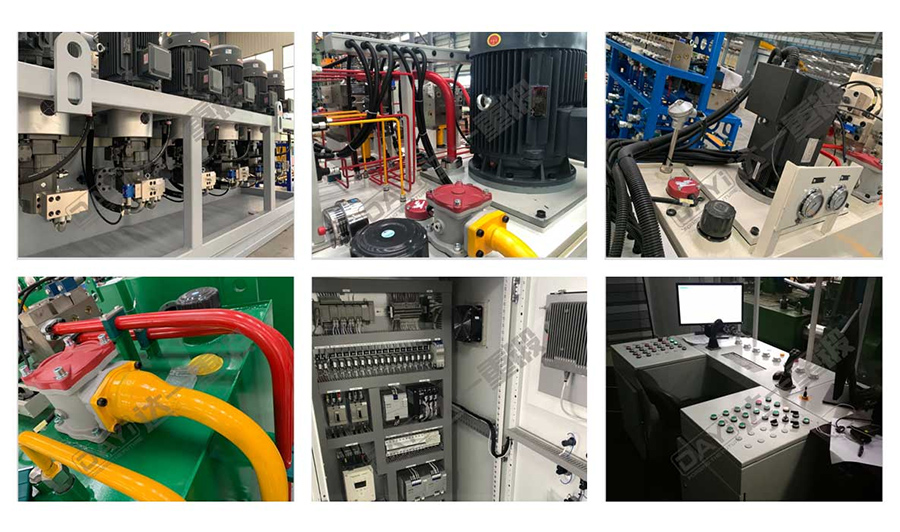

l Advanced welding technology is adopted, which has large up-and-down moving space, is convenient for workpiece pressing, can preset working pressure, and can be equipped with electronic digital tonnage display and hydraulic system heat dissipation device. Independent movable pump station, hydraulic control unloading on return trip, optional protective net.
Delivery time: 3-6 months.
Warranty period: 12 months.
