1. Introduction：

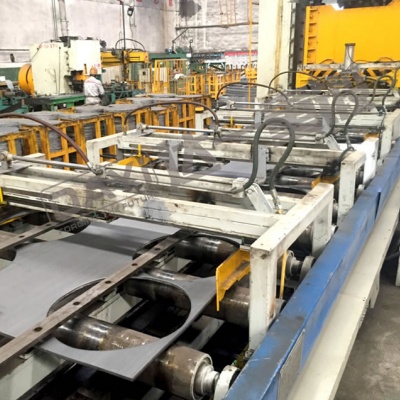

This hydraulic press adopts electro-hydraulic proportional servo control technology, dynamic pressurization technology and balancing cylinder technology, which greatly improves the punching frequency of the hydraulic press. Compared with ordinary hydraulic presses, it has the advantages of high punching frequency and less power consumption in a single punching stroke. Mainly used in automobile and agricultural machinery sheet stamping industry. The automatic stamping production line is equipped with automatic equipment such as unstacking, cleaning, oiling, unstacking, robot loading and unloading, line tail and waste conveying line.

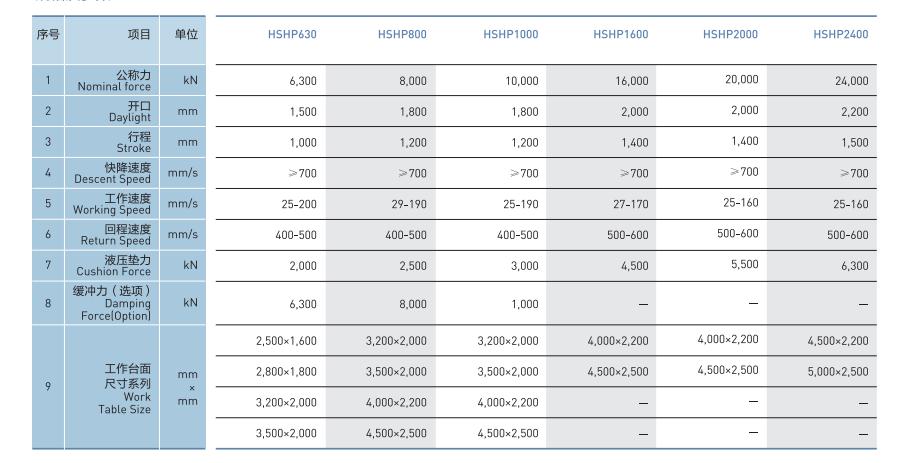

2. Specifications and parameters

3. Application：

It is mainly used for stamping metal sheets, and the stamping frequency is 1.7-2 times that of the current rapid hydraulic press, which is suitable for automatic connection.

4. Advantages：

·Suitable for deep drawing, prolong the life of the die and reduce the material requirements.

·Various mobile stations: moving forward, moving sideways, and double T-shaped mobile stations.

·Full tonnage blanking function, realizing blanking and punching.

·Pressure-free die alignment function, convenient die alignment.

·Proportional servo control technology to achieve high speed and no impact.

·Energy-saving control system, dynamic pressurization technology, installed power basically did not increase.

·More than 20% energy is saved in a single stamping stroke.

·Full digital control of press parameters and closed-loop control of pressure.

·Sectional pressure control of hydraulic pad.

·Die parameter storage function, fault diagnosis function.

5. Optional configuration

·Four-point flexible control hydraulic pad, four-corner pressure control separately

·Mold identification system

·Quick clamping device for mould
