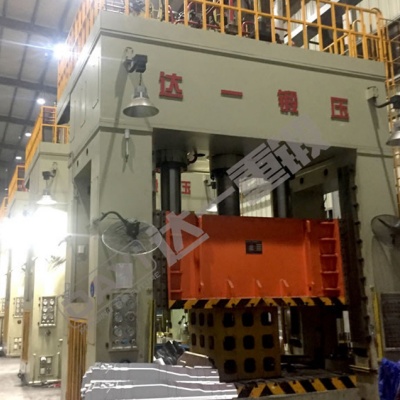

1. Introduction：

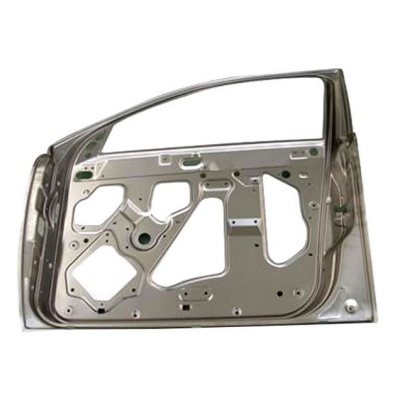

This series of products is a stamping equipment independently developed by digesting and absorbing foreign advanced technology, and was included in the national major scientific and technological project of high-grade CNC machine tools and basic manufacturing equipment in 2009. It has many independent proprietary technologies and characteristics, such as fast, flexible, energy-saving, environmental protection, automation, safety and pleasant, and is suitable for stamping and forming processes such as stretching, blanking and punching of various metal sheet parts. Widely used in automobiles, agricultural machinery, construction machinery, light household appliances and other fields.

The automatic stamping production line is equipped with automatic equipment such as unstacking, cleaning, oiling, robot loading and unloading, line tail and waste conveying line.

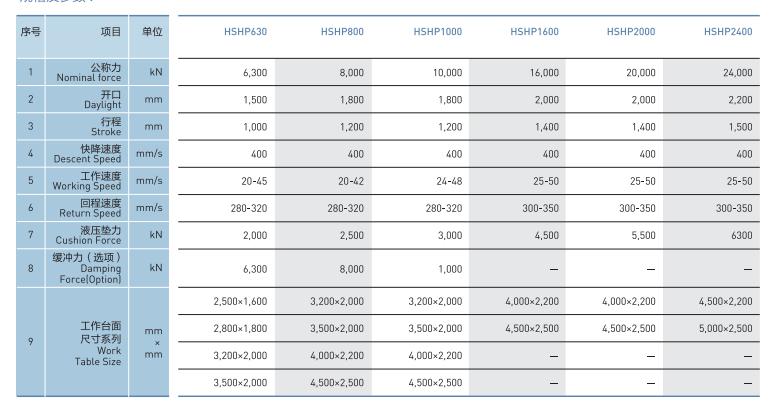

2. Specifications and parameters

3. Application：

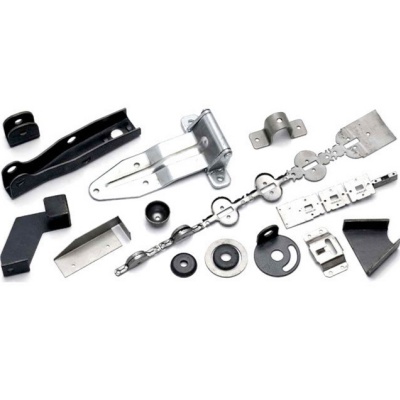

Mainly used for stamping metal sheets.

4. Advantages:

·Multi-mode mobile station: forward movement, lateral movement and double T-shaped movement.

·Full tonnage blanking function

·Full digital control of press parameters and closed-loop control of pressure

·Segmented pressure control of hydraulic pad

·No pressure die alignment function, convenient die alignment.

·Die parameter storage function, fault diagnosis function

5. Optional configuration:

·Four-point flexible control hydraulic pad

·Mold identification system

·Quick clamping device for mould
