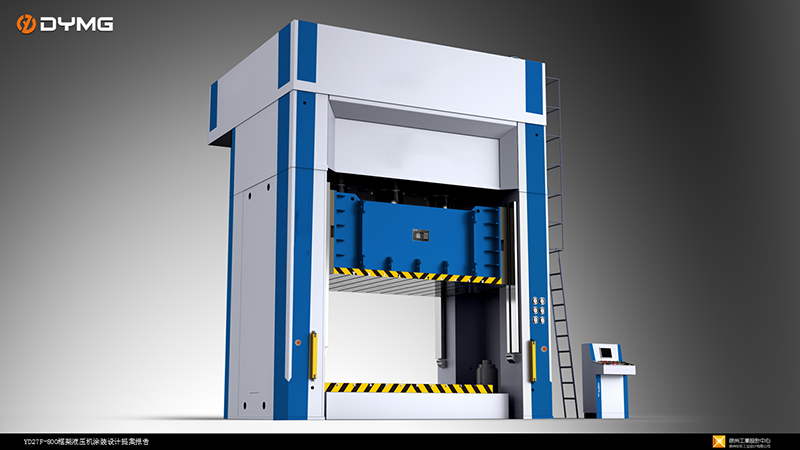

High performance Frame hydraulic press

1. Description

Frame hydraulic press is used for various stamping processes of metal materials, such as drawing, blanking (blanking buffer device can be selected), bending, flanging, cold extrusion, etc. It is also suitable for correction, pressing and pressing of powder products, abrasive products, plastic products and insulating materials, etc.

2. Application

This equipment is especially suitable for bending, forming, flanging and other processes of central load parts. After being equipped with blanking buffer device, it can also be used for punching and blanking processing. It is a product of shipbuilding industry, pressure vessel industry, chemical industry and other industries. It can also be used in drawing forming, turning, bending, stamping and other processes of sheet metal parts, and can also be used in general pressing processes, and devices such as blanking buffer, punching and moving workbench can be added according to users' needs.

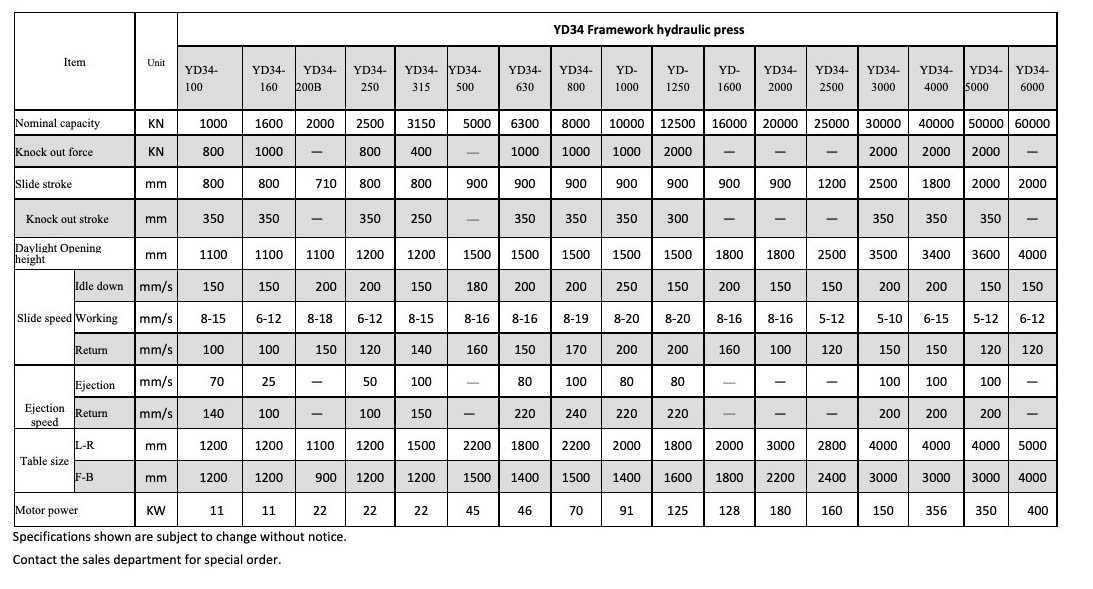

3. Specification

The main tonnage of frame hydraulic press is 200,315,400,500,630,800,1000, 1600, 2000, 2500, 3000, 4000, 5000, 6000 tons.

4. Main structure and electrical system

Advanced welding technology is adopted, with large up and down movement space, which is convenient for workpiece pressing, preset working pressure, electronic digital tonnage display and hydraulic system radiator. Independent movable pump station, hydraulic control unloading on return trip, optional protective net.

5.Features and advantage

• The fuselage adopts computer optimized design and all-steel welded frame structure with good accuracy;

• The hydraulic control adopts the cartridge valve integrated system, which reduces leakage points, has reliable action and long service life;

• Two molding processes of constant pressure and fixed distance can be realized, with the function of keeping rolling time and adjustable delay time;

• Four corners and eight sides guide rail, with high guiding precision and strong anti-eccentric load ability, and centralized lubrication is adopted;

• Movable workbench, blanking buffer device, photoelectric protection device, punching device, slide safety bolt, etc. can be configured;

6. Delivery date and quality assurance policy

Delivery period: 3-6 months

Warranty period: 12 months
