Various Frame Hydraulic Press

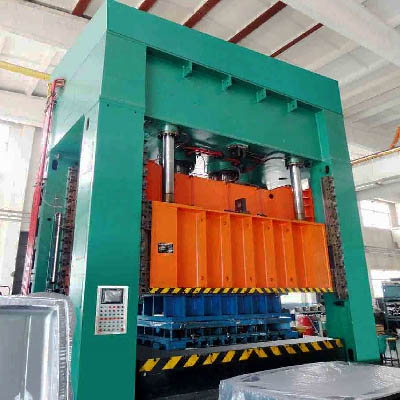

Closed Die MH series hot forging frame hydraulic press

Max Feeding size:
Power:
Capacity:
Product description: Systems for warm forging,Systems for cold forging, Hydraulic open die forging, hot forging, closed-die forging,open die forging; hydraulic forging press,Free forging and die forming of steel ingot,is a kind of hydraulic press machine open die forging presses feature heavy, rigid press frames with deep, heavy fabricated slides with high guide ratios.Die Hot forging hydraulic press molding stamping forging for auto parts, electrical products and hardware tools. Cold extrusion molding stamping forging for auto parts, LED heat sink and hardware tools. Also, Hydraulic Forging Press made available by us find wide application in is widely used to form car wheels, bushings, gears as well as forged fittings like Tee ...
INQUIRY EMAIL

1.Product description

YD16 series die forging hydraulic press is a modern die forging high-precision forming equipment produced by introducing advanced technology from the world, which has a wide range of applications, including multi-directional extrusion, upsetting, punching, closed die forging and so on. It is mainly suitable for forging production of all kinds of extra-long forgings, shafts, discs and special-shaped parts, such as bearing inner rings, flanges, half shafts, joints, crossheads, hubs, train wheels, etc.

2.Features and advantages

The equipment adopts prestressed composite frame structure or integral frame structure, with stable and reliable structure, long servie life and working tonnage up to 30,000 tons;
One piece of equipment can be equipped with multi-stations according to the technological requirements, and forging can be carried out in one step, with high production efficiency and low production cost;
Forming has two working modes: fixed size pressing and fixed forming force pressing, which can be selected at will;
Auxiliary systems such as servo energy-saving system, quick mold change system, automatic mold spraying and lubrication system and automatic feeding system can be configured.

3.Application

This series of hydraulic press is suitable for stretching, bending, flanging, cold extrusion, blanking and other processes of metal materials, as well as for correcting, pressing, pressing and forming powder products and abrasive products, and pressing and salting plastic products and insulating materials. It is widely used in large, medium and small enterprises, factories, industrial and mining and automobile repair shops, heavy machinery, flange plates, belt pulleys, shaft bushings, disassembly and assembly of bearings, straightening and correction, bending, punching with dies, blanking, stretching and flanging instead of the old screw hand press for forming, and jack testing with pressure gauges.

4. Product model:

Die forging hydraulic press is also called: hot die forging, liquid die forging and multi-direction die forging. The tonnage of die forging equipment of our company is 2500, 4000, 5000, 6300, 10000 tons hot die forging, aluminum wheel forging and other models.

Item		Item	AYD16 series die forging hydraulic press

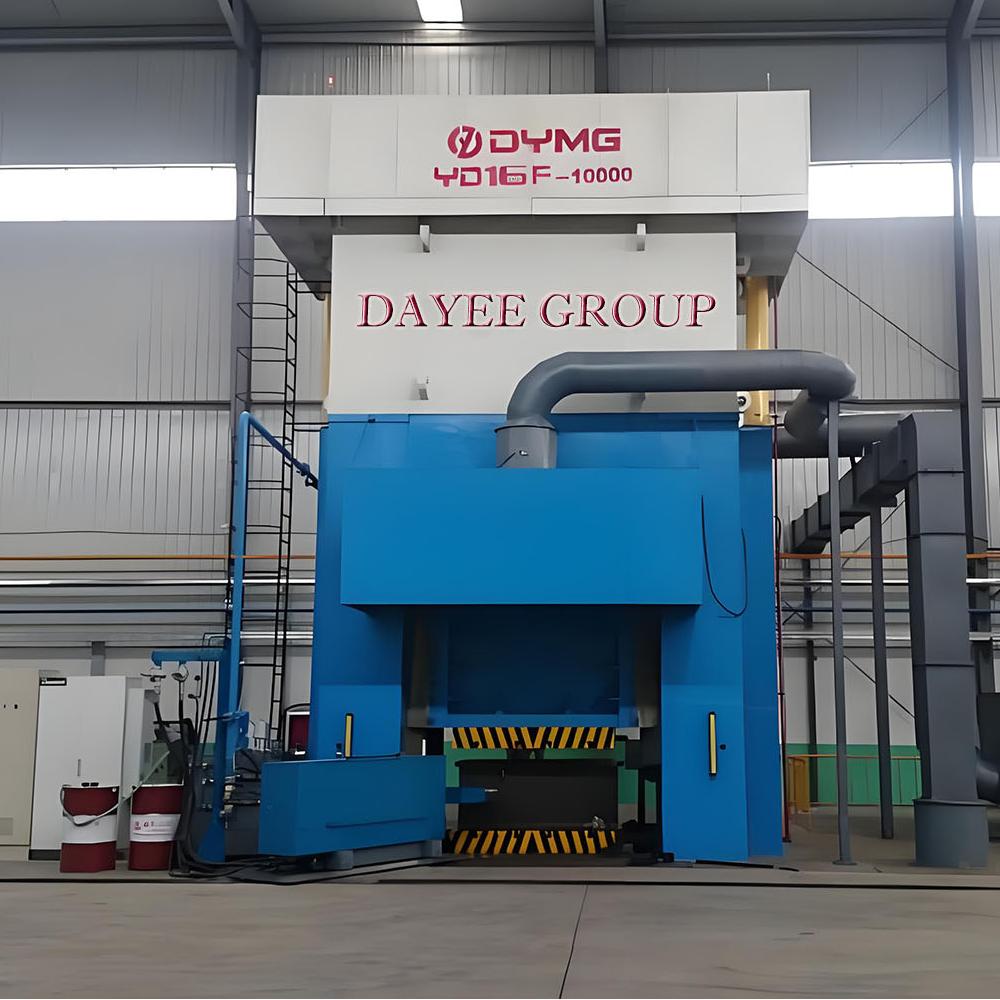

Item		Item	YD16F-630	YD16-630	YD16F-800	YD16-800	YD16-1000	YD16F-1250	YD16F-1600	YD16F-2000	YD16F-3150	YD16F-5000	YD16F-10000
Rated force		KN	6300	6300	8000	8000	10000	12500	16000	20000	31500	50000	100000
Capacity of return		KN	6300	8000	1000	1000	1300	1000	1200	1200	1500	3000	2000
Knock out force		KN	630	1000	1000	1000	1600	1000	1600	1600	2000	1200	2500
Slide stroke		mm	900	1000	600	900	900	600	600	600	800	1300	900
Knock out stroke		mm	350	350	350	350	350	350	350	350	350	350	350
Daylight Opening height		mm	1400	1500	1200	1600	1500	1200	1400	1400	1500	2300	2000
	Down	mm/s	200	250	250	250	200	250	250	250	250	200	100
Slide speed	Pressing	mm/s	25~55	20~50	20~45	20~45	15~35	20~40	20~40	20~40	20~40	12	5~12
	Return	mm/s	250	200	250	250	200	350	250	250	250	150	100
Knock out speed	Knock out	mm/s	100	100	100	100	no	100	100	100	100	100	100
Knock out speed	Return	mm/s	200	200	200	200	200	200	180	180	200	200	200
Table area	L-R	mm	1400	1000	1400	1000	1200	1200	1500	1600	2000	2500	2500
Table area	F-B	mm	1400	1000	1000	1000	1200	1200	1100	1200	1500	2000	2000
Motor power		KW	165	142	195	195	195	250	340	380	610	980	590
Structure			Frame	Column	Frame	Column	Column	Frame	Frame	Frame	Frame	Frame	Frame
