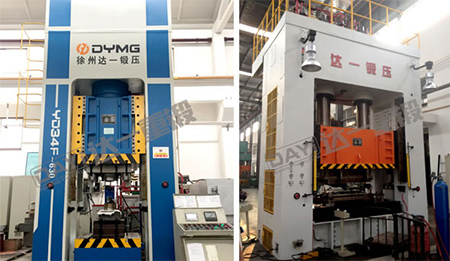

Frame hydraulic press

1. Description:

Frame hydraulic press is used for various stamping processes such as stretching, blanking (blanking buffer device can be selected), bending, flanging and cold extrusion of metal materials, and is also suitable for correction, press-fitting and press-forming of powder products, abrasive products, plastic products and insulating materials.

2. Application:

This equipment is especially suitable for bending, forming, flanging and other processes of central load parts. After equipped with blanking buffer device, it can also be used for punching and blanking processing, and it is a product of shipbuilding industry, pressure vessel industry, chemical industry and other industries.

It can be used for drawing, turning, bending and stamping of sheet metal parts, and can also be used for general pressing processes. According to the needs of users, devices such as blanking buffer, punching and moving table can be added.

In addition to forging, three-beam four-column hydraulic press can also be used for correction, press-fitting, packaging, briquetting and pressing plate.

It can also be used in the pressing process of shaft parts, the calibration, buckle and press-fitting process of profiles, and the pressing process of bending, arguing, setting, stamping, nesting, stretching and plastic materials of plate parts, such as stamping, bending, flanging and thin stretching, etc., and can also be used in the pressing and forming operations of correction, press-fitting and plastic products and powder products.

3. Specification:

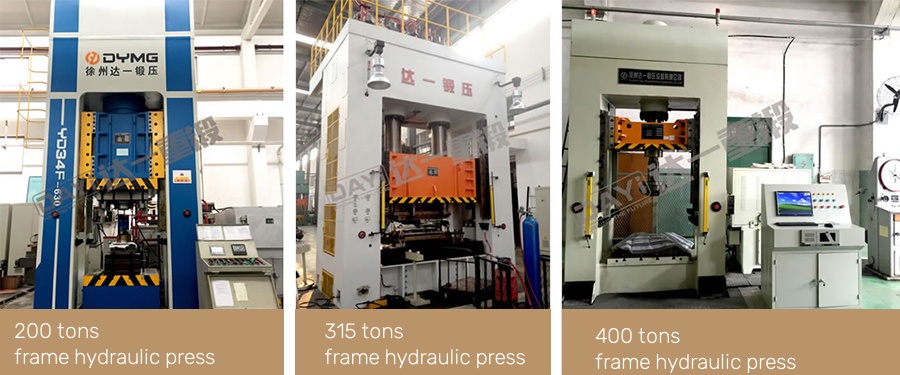

Frame hydraulic press, also known as frame press, frame press and frame punch, has the main tonnage of 200, 315, 400, 500, 630, 800 and 1000 tons.

4. Main structure:

Advanced welding technology is adopted, which has large up-and-down moving space, is convenient for workpiece pressing, can preset working pressure, and can be equipped with electronic digital tonnage display and hydraulic system heat dissipation device. Independent movable pump station, hydraulic control unloading on return trip, optional protective net.

For example, according to the types of liquids that transmit pressure, there are two categories: hydraulic press and hydraulic press. The total pressure produced by hydraulic press is large, and it is often used for forging and stamping. Forging hydraulic press is divided into die forging hydraulic press and free forging hydraulic press. Die forging hydraulic press needs die, while free forging hydraulic press does not need die. The 10,000-ton hydraulic press made in China is a free forging hydraulic press.

5. Features and advantages:

l The fuselage adopts computer optimization design and all-steel welded frame structure, which has good accuracy retention;

l Hydraulic control adopts cartridge valve integrated system, which reduces leakage points, has reliable action and long service life;

l It can realize two forming processes of constant pressure and fixed distance, with the function of maintaining calendering time and adjustable delay time;

l Four-corner and eight-sided guide rails have high guiding accuracy and strong anti-unbalanced load ability, and adopt centralized lubrication;

l Can be equipped with mobile workbench, blanking buffer device, photoelectric protection device, blanking device, slider safety bolt, etc.

6. Delivery date and quality assurance policy:

       Delivery time: 3-6 months.

       Warranty period: 12 months
