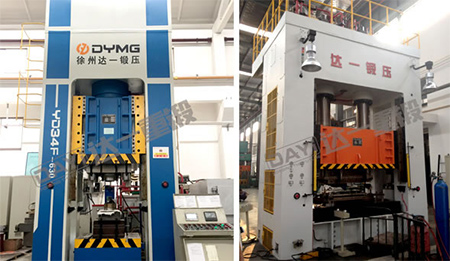

400-ton frame hydraulic press

1. Description:

The 400-ton frame hydraulic press is suitable for pressing, correcting, stretching, bending, forming, blanking, flanging and other stamping processes, as well as powder metallurgy, auto parts, household appliances, kitchen utensils and other pressing and forming processes.

2. Application:

l This equipment is especially suitable for bending, forming, flanging and other processes of central load parts. After equipped with blanking buffer device, it can also be used for punching and blanking processing, and it is a product of shipbuilding industry, pressure vessel industry, chemical industry and other industries.

l It can be used for drawing, turning, bending and stamping of sheet metal parts, and can also be used for general pressing processes. According to the needs of users, devices such as blanking buffer, punching and moving table can be added.

l In addition to forging, three-beam four-column hydraulic press can also be used for correction, press-fitting, packaging, briquetting and pressing plate.

l It can also be used in the pressing process of shaft parts, the calibration, buckle and press-fitting process of profiles, and the pressing process of bending, arguing, setting, stamping, nesting, stretching and plastic materials of plate parts, such as stamping, bending, flanging and thin stretching, etc., and can also be used in the pressing and forming operations of correction, press-fitting and plastic products and powder products.

3. Specification:

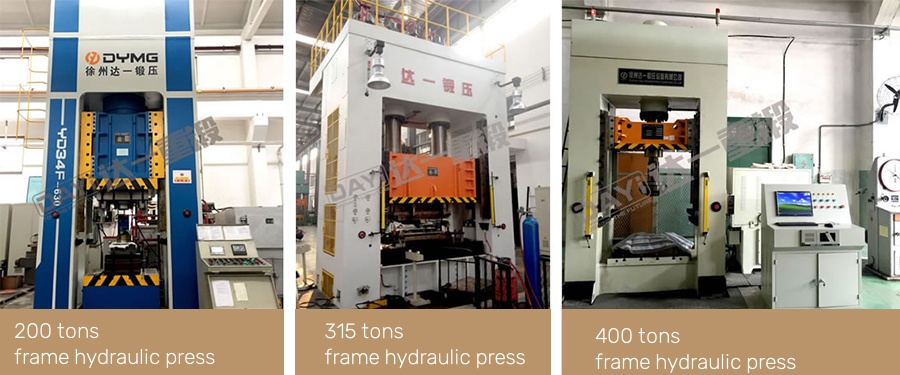

Frame hydraulic press, also known as frame press, frame press and frame punch, has main tonnage of 200, 315, 400, 500, 630, 800 and 1000 tons.

4. Main structure:

l Safety protection of 400t frame hydraulic press;

Set the emergency stop button, press the emergency stop button, the press will stop immediately, and the upper and lower limit positions of the guide post are provided with limit switches.

l Working environment:

Power supply: three-phase 380V(+5%), 50HZ,

Working environment temperature: 0 ~ 40℃.

5. Features and advantages:

l The fuselage adopts computer optimization design and all-steel welded frame structure, which has good accuracy retention;

l Hydraulic control adopts cartridge valve integrated system, which reduces leakage points, has reliable action and long service life;

l It can realize two forming processes of constant pressure and fixed distance, with the function of maintaining calendering time and adjustable delay time;

l Four-corner and eight-sided guide rails have high guiding accuracy and strong anti-unbalanced load ability, and adopt centralized lubrication;

l It can be equipped with movable workbench, blanking buffer device, photoelectric protection device, blanking device, slider safety bolt, etc.

6. Delivery date and quality assurance policy:

Delivery time: 3-6 months.

Warranty period: 12 months.
