New frame forging hydraulic press

1. Description:

The new frame forging hydraulic press has less vibration and noise, will not disturb the people and meet the requirements of environmental protection; High efficiency, especially when upsetting, which is many times higher than that of forging hammer; The price is low, and the price of forging hydraulic press with the same equivalent is much lower than that of forging hammer. The foundation cost is low, which is more than half of that of the forging hammer, and the factory building is not required to be earthquake-proof. The forged workpiece has good internal and external combination uniformity, reliable quality and few defects.

2. Application:

This series of new frame forging hydraulic press is suitable for drawing, bending, forming, blanking, flanging and other stamping processes, especially for the following fields: auto parts, household appliances, kitchen utensils, others: tractors, motorcycles, aerospace, aviation.

3. Performance characteristics:

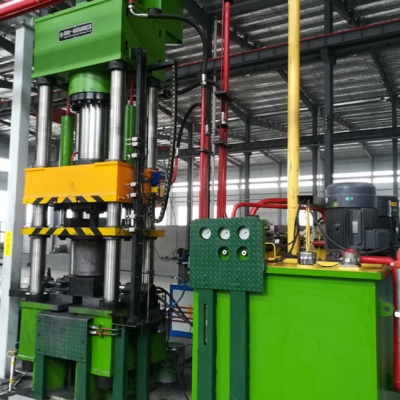

l The new frame forging hydraulic press is a four-column structure, and the stress parts are optimized, with beautiful appearance and economical application.

l The volume of the liquid filling box is increased, which ensures rapid liquid filling and reduces the pressure time. Large back heat dissipation area to reduce oil temperature.

l The end modulus of the main engine's three beams is large, which improves the stiffness of the three beams and greatly prolongs the service life.

l The master cylinder and piston rod are made of high-quality forgings, which improves the reliability.

l The main rod adopts four-nut structure, which improves the pre-tightening performance and can maintain the stability of precision for a long time.

l The surface of piston rod and column is quenched and plated with hard chromium, which improves the wear resistance and prevents surface corrosion and scratches.

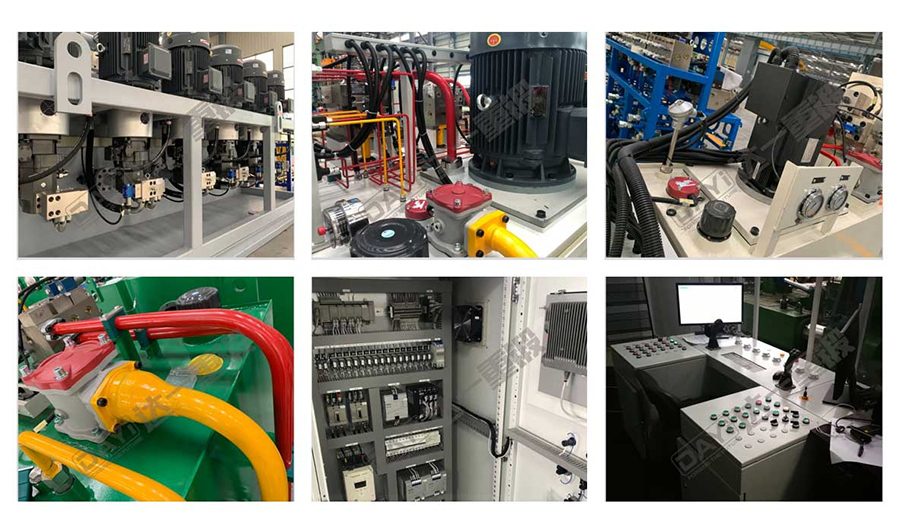

l Adopt advanced cartridge valve, compact structure, reduce pipeline links, improve system sealing and reduce leakage.

l The power system adopts oil-invaded vertical pump set. Reduce noise and have good oil absorption effect.

l The pressure gauge adopts shock-resistant pressure gauge, and is equipped with a pressure gauge throttle door, which is convenient for maintenance.

l The main cylinder seal adopts imported domestic preferred parts.

4. Features and advantages:

l A new full hydraulic power drive system of frame forging hydraulic press avoids oil-gas cross-connection;

l The light hammer moves freely and flexibly, and the energy of the heavy hammer is effectively controlled, which improves the reliability and adaptability of the forging hammer;

l Touch man-machine interface, digital input, automatic fault diagnosis and alarm display in Chinese and English;

l The impact energy and step sequence can be set digitally, which can reduce the impact of surplus energy, reduce the impact noise and improve the service life of the mold;

l Long hammer head structure, radial X-guide rail structure, good hammer head guidance accuracy retention;

l The power system and the drive system are separately installed overhead, and there is no hydraulic pump station on the ground;

l Advanced cone valve design, fast response, good sealing, not easy to produce internal leakage;

l Safety design of built-in accumulator and pipeline installation;

l The flexible design of swingable oil cylinder and elastic hammer rod, and the double anti-leakage seal design of high and low pressure can greatly improve the reliability of forging hammer;

5. Delivery date and quality assurance policy:

Delivery time: 3-6 months.

Warranty period: 12 months
